VX FT (Titan)

Background

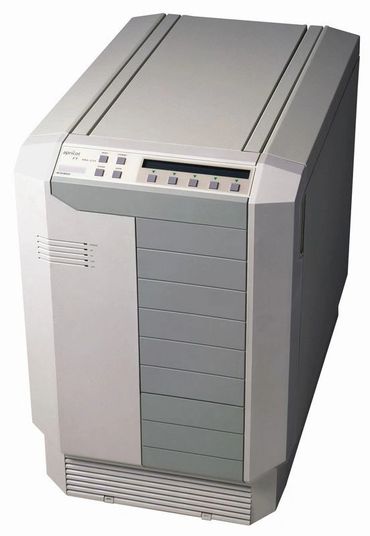

The FT was Apricot's first dedicated server product.   The Development codename was 'Titan' - a highly appropriate name give the sheer bulk of the VX FT (the machine's packaging had an integrated forklift pallet).   Two large pop-up carrying handles were built into the top surface to help move the thing into position (and it was a two person job)


The VC FT had an integrated battery in its base to provide an uninterruptible power supply.


The Front of the FT had a control panel that could be used to manage core functions of the server.

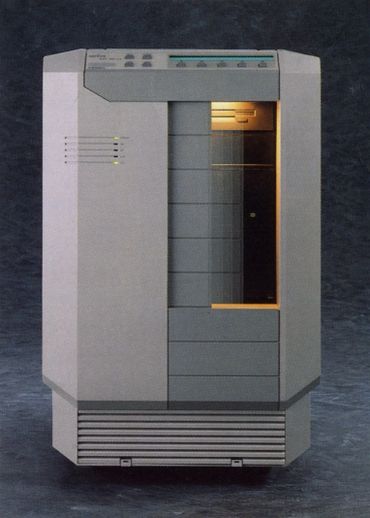

The front drive bays were protected by a motorised sliding cover controlled by one of the front panel buttons.  This bay was illuminated when open, so our engineers inevitable started calling if the 'fridge door' (probably helped by the fact that it was literally the size of a fridge).


The VX FT was (sadly for Apricot) yet another technically ambitious dead-end, as the market was about to transition to rack-mounted servers.


Almost all the VX FT units I saw were used for running Novell Netware, although they were offered with Xenix as well.


Hardware Specification

CPU

Intel 80386DX-25 or Intel 80486DX-25


Bus Architecture

Microchannel (MCA)


RAM

1Mb to 16Mb (8 on-board SIMM sockets)


Video

On board VGA


Storage

Up to 5x 5.25" full-height SCSI hard disks up to a total of 10Gb


Networking


External Ports

Keyboard

Mouse

Synchronous comms

VGA

Parallel Printer (DB-25)

RS232 (DB-25)

Ethernet (Thin BNC and Thick D-Shell)


Internal Expansion

4x 16-bit MCA slots

4x 32-bit MCA slots

Maths Co-processor socket


Product Codes

TI (Titan Motherboard)

TN (Scorpion Motherboard)

TN (Scorpion Motherboard)



TI42700VX FT 400/10 - SEE 44087

TI42841VX FT 400/30 i486

TI42873VX FT 400/60 i486

TI43359VX FT 400/90 i486

TI43429VX FT 400/30 i486 110V

TI43430VX FT 400/60 115V

TI43432VX FT 800/10 386DX

TI43433VX FT 800/30 i486

TI43434VX FT 800/60 i486

TI43435VX FT 800/90 i486

TI43438VX FT 800/60 115V

TI44054VX FT 400-10 i386G

TI44087VX FT 400/10 i386TI44088VX FT 400/60 i386TI44161VX FT 800/10 i386TI44162VX FT 800/60 i386TI44163VX FT 800/90 i386

TI45568VX FT 800/30 760MB CUSTOMTI46851VX FT 400/30 i486 8MbTI46874VX FT 400/60 12Mb 110VTI46930VX FT 800/30 i486 16Mb

TI47232FTs386-25:UK/4/350TI47233FTs386-25:UK/4/650TI47234FTs386-25:UK/4/1050TI47235FTs386-25:UK/16/350TI47236FTs386-25:UK/16/650TI47237FTs386-25:UK/16/1050TI70043FTs386-25:UK/8/350TI70049FTs386-25:UK/4/350TI70056FTs386-25:UK/8/350TI70087FTs386-25:UK/4/650TI70124FTs386-25:UK/8/350TI70148FTs386-25:UK/8/350TI70156FTs386-25:UK/8/350TI70199FTs386-25:UK/4/350TI70295FTs386-25:UK/16/350TI70301FTs386-25:UK/8TI70302FTs386-25:UK/12/650TI70375FTs386-25:MEG/4TI70407FTs386-25:UK/4TI70452FTs386-25:UK/4/350/350TI70454FTs386-25:UK/12/350TI70455FTs386-25:UK/12/650TI70474FTs386-25:UK/8/350TI70495FTs386-25:UK/8/1050TI70505FTs386-25:UK/12/350TI70527FTs386-25:UK/4/350TI70546FTs386-25:UK/12/350TI70583FTs386-25:UK/16TI70590FTs386-25:UK/4TI70619FTs386-25:UK/4/350TI70645FTs386-25:UK/12/510TI70666FTs386-25:UK/4/650TI70702FTs386-25:UK/4/350TI70915FTs386-25:UK/16/510/350TI70952FTs386-25:UK/4/350TI71053FTs386-25:UK/12TI71095FTs386-25:UK/8/510TI71216FTs386-25:UK/4/510TI71251FTs386-25:UK/16/1050TI71478FTs386-25:UK/4TI71516FTs386-25:UK/8/510/510TI31VX FT 400/90 i386TI32VX FT 400/90 i386TI37VX FT 800/90 i386TI38VX FT 800/90 i386

TN (Scorpion Motherboard)

TN (Scorpion Motherboard)

TN (Scorpion Motherboard)

 TN46913FTs486-25:INT/4/350 110VTN46986FTs486-25:UK/16/650TN46987FTs486-25:UK/16/1050TN47022FTs486-25:INT/16/650 110VTN47048FTs486-25:8/650 CEBITTN47049FTs486-25:16/650 CEBITTN47050FTs486-25:16/650 CEBITTN47051FTs486-25:16/650 CEBITTN47082FTs486-25:12/650 CEBITTN47083FTs486-25:12/650 110VTN47090FTs486-25:UK/16/1050x4TN47238FTs486-25:UK/4/350TN47239FTs486-25:UK/4/650TN47240FTs486-25:UK/4/1040TN47241FTs486-25:UK/16/350TN47242FTs486-25:UK/16/650TN47243FTs486-25:UK/16/1050TN48450FTs486 Mk1 to dp UPGRADETN70050VXFT486-25:UK/16/1050/1050TN70058VXFT486-25:UK/16/1050TN70059VXFT486-25:UK/4/350TN70061VXFT486-25:UK/8/350TN70062VXFT486-25:UK/4/350TN70064VXFT486-25:UK/16/1050TN70072VXFT486-25:UK/16/350/trTN70073VXFT486-25:UK/16/350TN70074VXFT486-25:UK/16/650TN70075VXFT486-25:UK/16/650TN70076VXFT486-25:UK/8/350TN70079VXFT486-25:UK/4/1050TN70081VXFT486-25:UK/8/650TN70083VXFT486-25:UK/16/650TN70086VXFT486-25:UK/4/1050TN70088VXFT486-25:UK/16/1050/1050TN70095VXFT486-25:UK/16/1050/650TN70097VXFT486-25:UK/12/350TN70098VXFT486-25:UK/8/350TN70099VXFT486-25:UK/8/350TN70100VXFT486-25:UK/8/350TN70101VXFT486-25:UK/16/650TN70103FTs486-25:UK/4/350TN70104FTs486-25:UK/8/350TN70105VXFT486-25:UK/16TN70106VXFT486-25:UK/12/1050/1050TN70107VXFT486-25:UK/dp/16/350/trTN70108VXFT486-25:UK/16/650TN70109VXFT486-25:UK/12/1050/1050TN70110VXFT486-25:UK/dp/16/350/trTN70114VXFT486-25:UK/16/1050TN70115VXFT486-25:UK/4/350TN70118VXFT486-25:UK/16/650TN70119VXFT486-25:UK/8/350TN70120VXFT486-25:UK/8/650TN70121VXFT486-25:UK/16TN70122VXFT486-25:UK/16/1050/650TN70123VXFT486-25:UK/8/350TN70125VXFT486-25:UK/4/1050TN70126VXFT486-25:UK/8/350TN70127VXFT486-25:UK/16/650TN70128VXFT486-25:UK/12/350TN70129VXFT486-25:UK/8/350TN70130VXFT486-25:UK/16/350TN70131VXFT486-25:UK/4/1050TN70132VXFT486-25:UK/16/1050/1050TN70133VXFT486-25:UK/16/1050/1050TN70134VXFT486-25:UK/16/1050TN70136VXFT486-25:UK/16/350/trTN70137VXFT486-25:UK/4TN70138VXFT486-25:UK/8/650TN70139FTs486-25:INT/4/650TN70141FTs486-25:UK/8/650TN70142FTs486-25:UK/16/650TN70143FTs486-25:UK/16/1050TN70144FTs486-25:UK/16/650/650TN70145FTs486-25:UK/16/650TN70149FTs486-25:UK/8/650TN70153FTs486-25:UK/16/650TN70154FTs486-25:UK/16/650TN70157FTs486-25:UK/8/650TN70160FTs486-25:UK/16/650TN70161FTs486-25:UK/16/650TN70168FTs486-25:UK/12/350TN70169FTs486-25:UK/16/650TN70172FTs486-25:UK/16/350TN70173FTs486-25:UK/12TN70177FTs486-25:UK/8/350TN70179FTs486-25:UK/16/350TN70180FTs486-25:UK/16TN70182FTs486-25:UK/16/650TN70184FTs486-25:UK/16TN70185FTs486-25:UK/8/350TN70187FTs486-25:UK/16/650TN70188FTs486-25:UK/16/650TN70195FTs486-25:UK/4/350TN70197FTs486-25:UK/4/650TN70198FTs486-25:UK/4/350TN70201FTs486-25:UK/12/350TN70202FTs486-25:UK/dp/16/350/350TN70203FTs486-25:UK/dp/16TN70204FTs486-25:UK/8/650TN70205FTs486-25:UK/8/350/350TN70206FTs486-25:UK/16/650TN70207FTs486-25:UK/16/650TN70210FTs486-25:UK/12/350/350TN70220FTs486-25:INT/dp/16/350/350TN70225FTs486-25:UK/16/350/1050TN70226FTs486-25:UK/12/650TN70231FTs486-25:UK/16/650TN70237FTs486-25:UK/4/650TN70238FTs486-25:UK/dp/16/650TN70239FTs486-25:UK/12/350TN70242FTs486-25:UK/dp/16/650TN70243FTs486-25:UK/16/1050TN70244FTs486-25:UK/4TN70245FTs486-25:UK/8TN70248FTs486-25:UK/8/350TN70251FTs486-25:UK/16/650TN70254FTs486-25:INT/4/1050TN70256FTs486-25:INT/4/350TN70259FTs486-25:UK/8/650TN70261FTs486-25:UK/4/350TN70265FTs486-25:UK/8/650TN70267FTs486-25:UK/16/350TN70273FTs486-25:UK/8/350/350TN70274FTs486-25:UK/16/650TN70282FTs486-25:UK/dp/4/350TN70284FTs486-25:UK/16/650TN70288FTs486-25:UK/16/350/trTN70294FTs486-25:UK/4/650TN70296FTs486-25:UK/8/350TN70306FTs486-25:UK/16/650/650TN70307FTs486-25:UK/16/1050TN70308FTs486-25:UK/dp/16/1050TN70315FTs486-25:UK/16/350TN70319FTs486-25:UK/8/650TN70320FTs486-25:UK/16/350/350TN70322FTs486-25:UK/4/350TN70323FTs486-25:UK/16/1050/trTN70326FTs486-25:UK/8/650TN70328FTs486-25:UK/16/1050TN70330FTs486-25:UK/16/650TN70331FTs486-25:UK/16/350TN70332FTs486-25:UK/16/350/trTN70333FTs486-25:UK/16/350/trTN70334FTs486-25:JAP/4/1050TN70335FTs486-25:JAP/4/350TN70339FTs486-25:UK/16/650TN70343FTs486-25:UK/12/350/trTN70346FTs486-25:UK/16/650TN70348FTs486-25:UK/16/350TN70349FTs486-25:UK/12/650/350TN70353FTs486-25:UK/16/650/650TN70356FTs486-25:UK/4/650/350TN70360FTs486-25:UK/12/650TN70363FTs486-25:UK/16/350/350TN70364FTs486-25:UK/16/350/650TN70365FTs486-25:UK/4TN70369FTs486-25:UK/16TN70370FTs486-25:UK/16TN70371FTs486-25:UK/12/350TN70376FTs486-25:MEG/4TN70377FTs486-25:UK/dp/16/350/trTN70381FTs486-25:UK/16/1050TN70383FTs486-25:UK/8TN70386FTs486-25:UK/8/350TN70388FTs486-25:UK/8/350TN70389FTs486-25:UK/16/1050TN70393FTs486-25:UK/16/1050TN70395FTs486-25:UK/16/650TN70396FTs486-25:UK/8/350TN70398FTs486-25:UK/16/350/650TN70401FTs486-25:UK/12/650/trTN70405FTs486-25:UK/16/650/650TN70414FTs486-25:UK/8/650TN70415FTs486-25:UK/8/650TN70418FTs486-25:UK/8/350TN70420FTs486-25:UK/4TN70422FTs486-25:UK/12/1050TN70425FTs486-25:UK/16TN70429FTs486-25:UK/4/350TN70431FTs486-25:UK/8/350TN70432FTs486-25:UK/16/650TN70433FTs486-25:UK/16/350TN70434FTs486-25:UK/16/1050TN70435FTs486-25:UK/16/650TN70439FTs486-25:UK/16/350TN70442FTs486-25:UK/16/350TN70443FTs486-25:UK/16/650TN70444FTs486-25:UK/16/650TN70449FTs486-25:UK/12/350TN70451FTs486-25:JAP/4/650TN70459FTs486-25:UK/16TN70461FTs486-25:UK/16/350TN70463FTs486-25:UK/16/650TN70465FTs486-25:UK/4/650TN70478FTs486-25:UK/16/650TN70482FTs486-25:UK/16/350TN70484FTs486-25:UK/12/350/350TN70488FTs486-25:UK/16/350/650TN70489FTs486-25:UK/16/650/650TN70490FTs486-25:UK/16/650TN70491FTs486-25:UK/12/350TN70492FTs486-25:UK/16/1050/1050TN70494FTs486-25:UK/12/650/650TN70496FTs486-25:UK/16/650TN70499FTs486-25:UK/16/650TN70501FTs486-25:JAP/8/350TN70503FTs486-25:UK/4/650TN70504FTs486-25:UK/8/650TN70506FTs486-25:UK/4TN70508FTs486-25:UK/16TN70509FTs486-25:UK/12/350/350TN70513FTs486-25:INT/16/1050/1050TN70517FTs486-25:INT/16/350/trTN70518FTs486-25:UK/16/1050TN70524FTs486-25:US/16/350TN70525FTs486-25:US/16/1050/1050TN70526FTs486-25:US/16/350/trTN70532FTs486-25:UK/16TN70533FTs486-25:UK/16TN70536FTs486-25:UK/16/650TN70537FTs486-25:UK/16/1050TN70538FTs486-25:UK/16/1050TN70539FTs486-25:UK/16/650TN70540FTs486-25:UK/16/350/350TN70541FTs486-25:UK/8TN70543FTs486-25:UK/16/650/650TN70545FTs486-25:UK/12/650TN70547FTs486-25:UK/8/350/1050TN70550FTs486-25:UK/16/650/650/trTN70552FTs486-25:MEG/4TN70554FTs486-25:UK/4/1050/trTN70558FTs486-25:UK/12/350TN70568FTs486-25:UK/16/650/650/trTN70578FTs486-25:UK/16/350TN70580FTs486-25:UK/8/1050TN70582FTs486-25:UK/16/650TN70587FTs486-25:UK/16/350/350TN70589FTs486-25:UK/8/trTN70591FTs486-25:UK/16/650/650TN70592FTs486-25:UK/4/350TN70593FTs486-25:UK/16/1050TN70595FTs486-25:UK/12/650TN70596FTs486-25:UK/16/1050TN70597FTs486-25:UK/16/650TN70598FTs486-25:UK/8/650TN70605FTs486-25:UK/16/650/650/trTN70606FTs486-25:UK/12/1050TN70608FTs486-25:UK/4TN70609FTs486-25:UK/16/650TN70613FTs486-25:UK/12TN70614FTs486-25:UK/8/350TN70616FTs486-25:UK/8/650TN70618FTs486-25:UK/12/1050/trTN70621FTs486-25:UK/8/350TN70622FTs486-25:UK/8/350TN70630FTs486-25:UK/16/350TN70631FTs486-25:UK/16/350TN70632FTs486-25:UK/16/650TN70643FTs486-25:UK/8/510TN70644FTs486-25:UK/4/510/510TN70649FTs486-25:UK/16/650/650/trTN70654FTs486-25:JAP/4/350TN70655FTs486-25:JAP/4/650TN70656FTs486-25:UK/4/650/650TN70669FTs486-25:UK/16/650/350TN70671FTs486-25:UK/16TN70677FTs486-25:UK/16/1050TN70685FTs486-25:MEG/4TN70686FTs486-25:UK/16/510TN70693FTs486-25:UK/16/1050TN70696FTs486-25:UK/16/650TN70705FTs486-25:UK/16/1050TN70710FTs486-25:UK/8/650TN70727FTs486-25:UK/16/510TN70729FTs486-25:UK/16/650/trTN70731FTs486-25:UK/16/350/trTN70750FTs486-25:UK/16/1050TN70756FTs486-25:UK/12/350TN70768FTs486-25:UK/16/510TN70770FTs486-25:UK/16TN70773FTs486-25:UK/8/350TN70781FTs486-25:UK/12/1050/trTN70796FTs486-25:UK/16/650/650TN70799FTs486-25:JAP/8/350TN70800FTs486-25:MEG/8/350TN70808FTs486-25:UK/16/510TN70812FTs486-25:UK/16/650/650/trTN70814FTs486-25:UK/16/1050TN70819FTs486-25:UK/12/350TN70824FTs486-25:UK/16/650/650TN70827FTs486-25:UK/4TN70835FTs486-25:UK/16/1050/trTN70839FTs486-25:UK/8TN70861FTs486-25:UK/16/1050/1050TN70866FTs486-25:UK/16/510/510TN70867FTs486-25:UK/8/510/N2/50TN70869FTs486-25:UK/16/350/350TN70870FTs486-25:UK/16/350/350TN70872FTs486-25:UK/16/1050/N100TN70874FTs486-25:UK/16/650TN70875FTs486-25:UK/16/650TN70880FTs486-25:UK/16/650TN70882FTs486-25:UK/12/650TN70883FTs486-25:UK/16/350/UNIXTN70895FTs486-25:UK/16/510/UNIXTN70896FTs486-25:UK/8/510/N20TN70904FTs486-25:UK/16/510TN70921FTs486-25:UK/16/510/trTN70926FTs486-25:UK/8/510TN70932FTs486-25:UK/16/510/510/tTN70933FTs486-25:UK/16/510/trTN70945FTs486-25:UK/16/510/trTN70953FTs486-25:UK/16/1050/1050TN70959FTs486-25:UK/12/1050TN70963FTs486-25:UK/8/350TN70964FTs486-25:UK/16/510TN70970FTs486-25:UK/16/510/510TN70974FTs486-25:JAP/4/1050TN70984FTs486-25:UK/16/510TN70986FTs486-25:UK/8/510TN70987FTs486-25:UK/12/1050/trTN70991FTs486-25:UK/12/350TN71000FTs486-25:UK/16/510TN71015FTs486-25:UK/16/1050TN71018FTs486-25:UK/16/650TN71024FTs486-25:UK/16/510/510TN71030FTs486-25:UK/16/350TN71037FTs486-25:UK/4/510TN71043FTs486-25:UK/4/510TN71048FTs486-25:UK/16/650TN71083FTs486-25:UK/8/510/N20TN71102FTs486-25:UK/16/510TN71104FTs486-25:UK/16/1050TN71116FTs486-25:UK/16/1050TN71117FTs486-25:UK/4/1050TN71120FTs486-25:UK/8/510TN71122FTs486-25:UK/16/510TN71128FTs486-25:UK/8/510TN71132FTs486-25:UK/16/1050/UNXTN71153FTs486-25:UK/16/1050/XNXTN71158FTs486-25:UK/16/510/trTN71162FTs486-25:UK/16/1050/1050TN71165FTs486-25:UK/8/1050/UNXTN71181FTs486-25:UK/16/1050/UNXTTN71208FTs486-25:UK/16/510TN71211FTs486-25:UK/16/510TN71218FTs486-25:UK/8/UNXTTN71224FTs486-25:UK/16/650/650TN71225FTs486-25:UK/16/510TN71232FTs486-25:UK/16/510/trTN71242FTs486-25:UK/16/510/trTN71243FTs486-25:UK/16/1050/1050TN71245FTs486-25:UK/16/1050TN71249FTs486-25:UK/16/510/UNXTN71252FTs486-25:UK/4/510/510TN71253FTs486-25:UK/12TN71265FTs486-25:UK/16/510TN71272FTs486-25:UK/16/1050TN71274FTs486-25:UK/16TN71275FTs486-25:UK/16/510/510TN71279FTs486-25:US/8/510TN71286FTs486-25:US/16/1050TN71287FTs486-25:UK/16/1050TN71290FTs486-25:UK/16/510TN71307FTs486-25:UK/4/510TN71311FTs486-25:UK/16/1050TN71319FTs486-25:UK/8/510TN71323FTs486-25:UK/16/510TN71346FTs486-25:UK/16/510TN71347FTs486-25:UK/8/510TN71348FTs486-25:MEG/8/510TN71349FTs486-25:JAP/8/510TN71350FTs486-25:UK/12/510TN71368FTs486-25:UK/16/510/UNXTTN71379FTs486-25:UK/16/1300/1300TN71380FTs486-25:UK/12/1300/N20TN71381FTs486-25:UK/16/1300TN71382FTs486-25:UK/16TN71383FTs486-25:UK/16/510/1300TN71388FTs486-25:INT/16TN71394FTs486-25:UK/16/1300/1300TN71396FTs486-25:UK/16/1300/trTN71398FTs486-25:UK/16/1050/trTN71401FTs486-25:UK/16/1050TN71402FTs486-25:UK/16/510/trTN71407FTs486-25:UK/16/510/UNXTTN71417FTs486-25:UK/4/510TN71418FTs486-25:UK/16/510TN71420FTs486-25:UK/16TN71421FTs486-25:UK/16/1300TN71422FTs486-25:UK/16/1300/1300TN71423FTs486-25:UK/16TN71427FTs486-25:UK/16/650TN71430FTs486-25:UK/12/1050/N100TN71431FTs486-25:UK/16/1050/N20TN71432FTs486-25:UK/16/1050/N100TN71442FTs486-25:UK/16/1050/1050TN71446FTs486-25:UK/12/510/N20TN71447FTs486-25:UK/12/1050/N20TN71459FTs486-25:UK/12/510/N10TN71463FTs486-25:UK/16/510TN71466FTs486-25:UK/16/1050/1050TN71467FTs486-25:UK/16/1050/1050TN71469FTs486-25:UK/16/1050/1050TN71479FTs486-25:UK/8/trTN71486FTs486-25:UK/12/510TN71498FTs486-25:UK/16/510TN71499FTs486-25:UK/12/510/N20TN71509FTs486-25:UK/16/1GTN71510FTs486-25:UK/16/UNXTTN71520FTs486-25:UK/16/510TN71526FTs486-25:UK/16/1GTN71531FTs486-25:UK/12TN71534FTs486-25:UK/16/1G3TN71538FTs486-25:UK/12/510TN71543FTs486-25:MEG/4TN71551FTs486-25:UK/4/1G/1GTN71560FTs486-25:UK/8/1GTN71564FTs486-25:UK/12TN71566FTs486-25:UK/12/510TN71592FTs486-25:UK/16/1GTN71598FTs486-25:UK/16TN71605FTs486-25:UK/12TN71652FTs486-25:UK/16/510/510TN71686FTs486-25:UK/16/1G3TN71691FTs486-25:UK/16/510TN71697FTs486-25:UK/16/510/trTN71717FTs486-25:UK/16/510TN71722FTs486-25:UK/16/1G/1G/trTN71761FTs486-25:UK/16/1G/tr/LMTN71833FTs486-25:UK/16/1G/trTN71841FTs486-25:UK/16/1G/trTN71862FTs486-25:UK/16/1G/1G/trTN71914FTs486-25:MEG/16/510TN71915FTs486-25:JAP/16/510TN72000FTs486-25:UK/4TN72045FTs486-25:UK/16/1G/1G/trTN72062FTs486-25:UK/16/1G/1G/tr/TN72127FTs486-25:UK/16/1GTN72131FTs486-25:UK/8/510TN72171FTs486-25:UK/4

Photo Gallery
